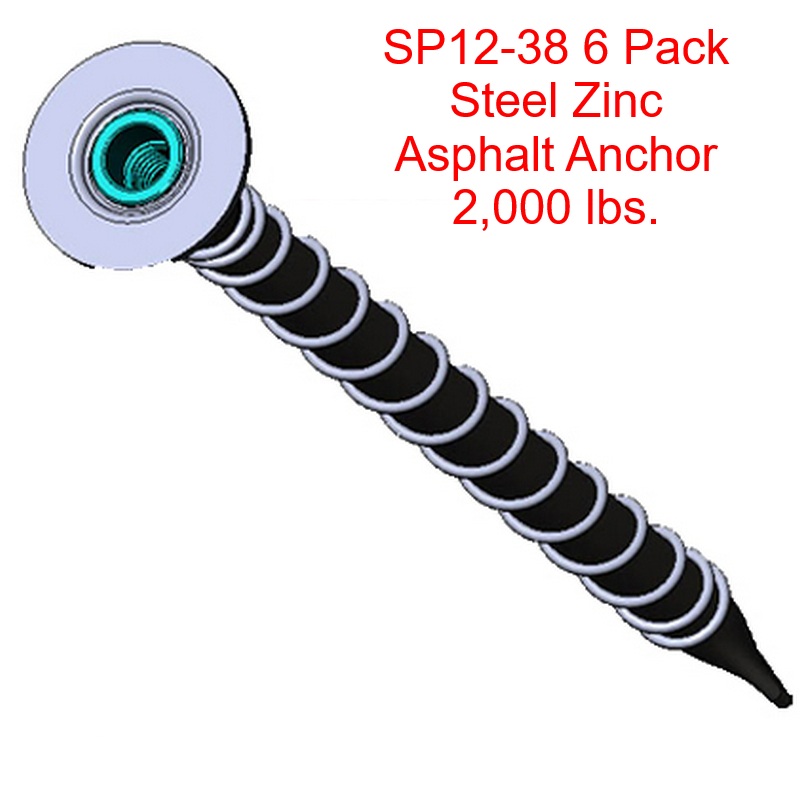

BoltHold SP12-38 6-Pack

The BoltHold SP12 is a heavy duty asphalt anchor rated at 2,000 lbs. pull. The 12″ long anchor is designed to mount plates, fences, machinery directly to asphalt surfaces.

SP12-38K incorporates a 3/8″-16 UNC female thread. The thread of the bolt inside the anchor should not exceed 5″. The anchor requires a 7/8″ hole 12″ deep and the use of a grout such as our EPX2 or EPX3. A 1.4″ welded washer at the top of the anchor prevents the anchor from dropping below the surface. The SP12 anchors are mounted flush with the surface of the roadway, so that attached devices can be removed without leaving dangerous screws or protrusions on the walkway.

The SP12-38K is a set of 6 anchors, each pre-installed with a 1″ bolt and a 1″ washer.

Please request quote or contact us for discounts on volume purchases
