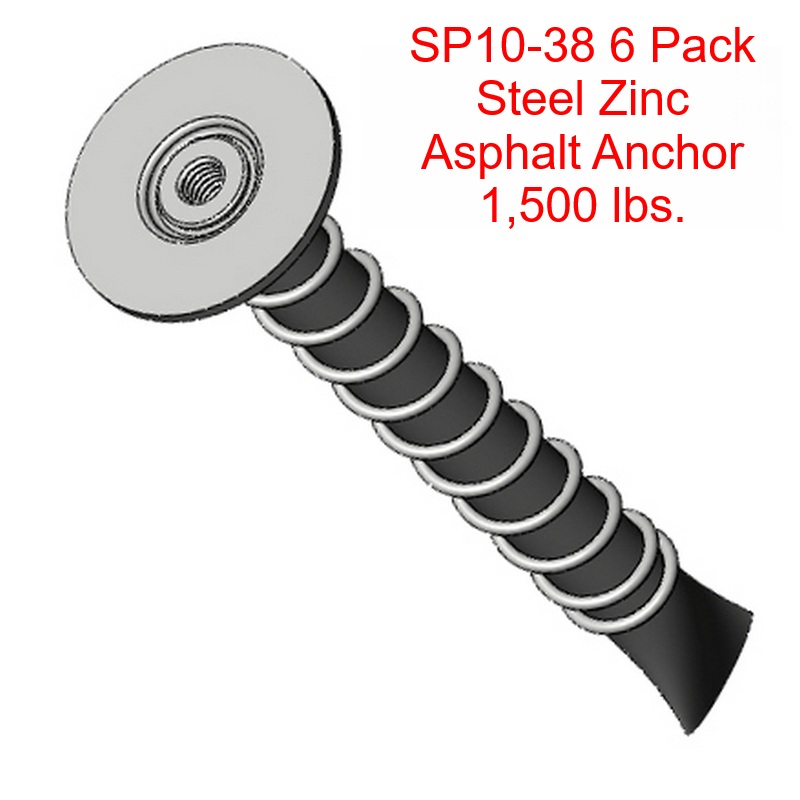

The BoltHold SP10-38K is a set of 6 asphalt anchors rated at 1,500 lbs. pull. The 6″ long anchor is designed to mount bike racks, signs, machinery directly to asphalt surfaces.
Each anchor incorporates a 3/8″-16 UNC (coarse) female thread. The length of the bolt inside the anchor should not exceed 3″. The anchor requires a 7/8″ hole, 6″ deep, and the use of a grout such as our EPX2 or EPX3. A 1.4″ header at the top of the anchor prevents the anchor from dropping below the surface as well as preventing the anchor from being pulled up into the mounting plate when the bolt is tightened.
The anchors are mounted flush with the surface of the roadway; attached objects can be removed without leaving dangerous screws or protrusions on the surface.
The SP10-38K is a set of 6 anchors, each pre-installed with a 1″ long bolt and a 1″ diameter washer.
Please request quote or contact us for discounts on volume purchases
